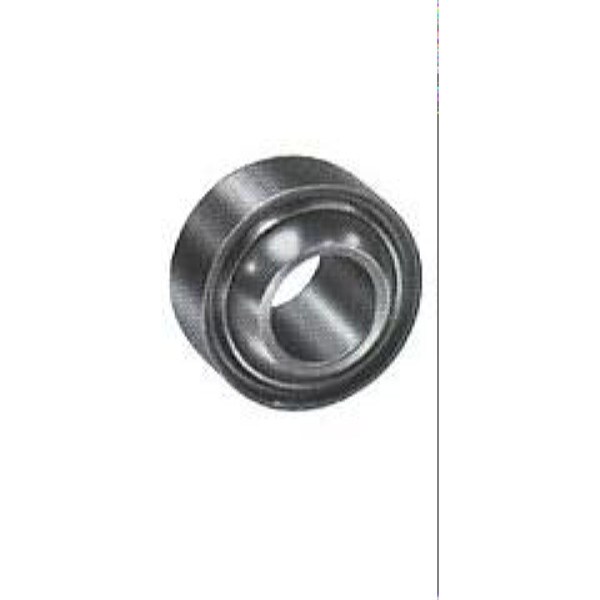

Aurora Monoball, Stainless Steel, 0.562" ID (PTFE Lined) (Grooved)
SKU: AUR-AWC-9TG
$64.30
Details
Details
Part Number : AWC-9TG
Military Part No. : MS14103-9
Bearing Type : Grooved
B - Ball Bore : .5625 in
D - Outside Diameter : 1.1250 in
W - Ball Width : .687 in
H - Race Width : .536 in
O - Ball Shoulder Diameter : .721 in
P - Groove Depth : .035 in
G - Groove Pitch Diameter : 1.025 in
R - Grooved Radius : .015 in
Ball Diameter : 1.000 in
a - Misalignment Angle : 10 º
Radial Static Limit Load Capacity : 26,600 lbs
Axial Static Limit Load Capacity : 5,370 lb
Oscillating Load : 18,100 lb
Standard Fit, No Load Rotational Breakaway Torque : .25 to 8.0 in·lb
Approximate Brg. Weight : .135 lb
Note : PTFE Teflon Lined
